Tankowiec floty typu Bieszczady 1928 (1 szt.)
Ponieważ
flota nasza wciąż się rozwija, także ilościowo i wszystkie już okręty są
napędzane paliwami płynnymi, zaszła konieczność budowy kolejnego tankowca, aby
uniezależnić się w tym zakresie od ewentualnego wsparcia zbiornikowców
„cywilnych” Nowo zbudowany tankowiec
jest największym w naszej flocie i jednym z większych na świecie.
W
porównaniu do naszych starszych tankowców, jednostka ta jest znacznie bardziej
zaawansowana technicznie; posiada m.in. możliwość tankowania innych okrętów w
marszu (z umiarkowaną prędkością i przy dobrej pogodzie, oczywiście). Całkowita
pojemność zbiorników to 11 300 t różnych paliw (olej opałowy/mazut, olej
napędowy/dieslowski, benzyna, nafta/kerozyna).
Uzbrojenie
okrętu mieści się w naszych standardach dla okrętów pomocniczych, prędkość jest
typowa dla tankowców zaopatrzeniowych, a zasięg umożliwia współpracę z okrętami
bojowymi na najodleglejszych akwenach. Rozmiary i kształt kadłuba dają bardzo
dobre właściwości morskie.

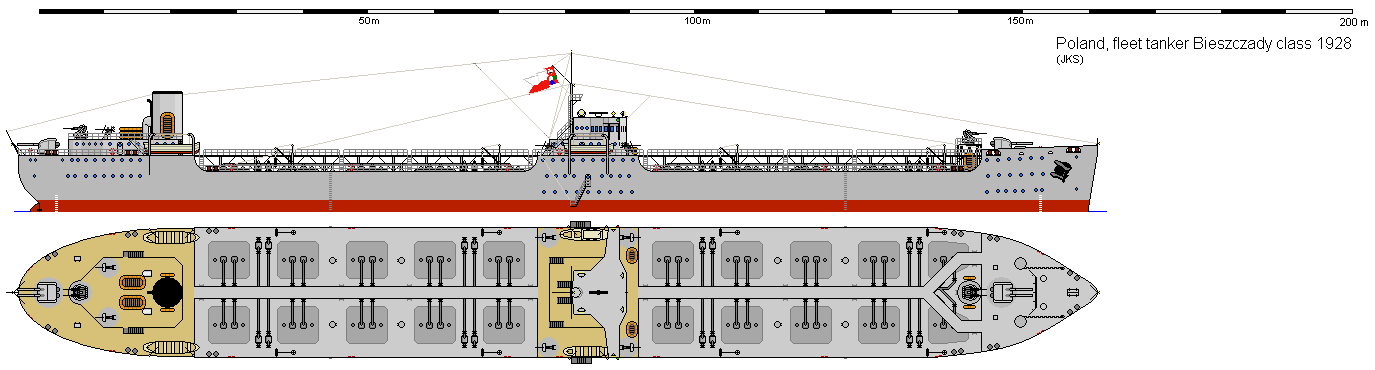

Rysunek
przedstawia okręt w stanie częściowego napełnienia zbiorników.
Sądziłem,
że taki sobie okręt pomocniczy to „machnę” w kilka godzin, a zajęło mi to dwa
dni. Wszystko z powodu ambicji, aby umieścić na rysunku maksimum szczegółów.
Kiedy już rozrysowałem wszystkie rurociągi, pompy, zasuwy i węzły instalacyjne,
nałożyłem na to przebiegający wzdłuż okrętu pomost i większość mojej pracy pod
nim znikła, prawie się rozpłakałem :(. JKS,
już wystarczy – don’t cry, be happy…
Bieszczady, Poland Fleet tanker laid down
1928
Displacement:
15 706
t light; 16 090 t standard; 18 081 t normal; 19 674 t full load
Dimensions: Length (overall / waterline) x
beam x draught (normal/deep)
(539,62
ft / 524,93 ft) x 65,62 ft x (26,25 / 28,28 ft)
(164,47
m / 160,00 m) x 20,00 m x (8,00 / 8,62
m)
Armament:
4
- 4,72" / 120 mm 50,0 cal guns - 52,91lbs / 24,00kg shells, 150 per gun
Dual purpose guns in deck and hoist mounts,
1920 Model
2 x Twin mounts on centreline ends, evenly
spread
4
- 1,57" / 40,0 mm 60,0 cal guns - 2,05lbs / 0,93kg shells, 600 per gun
Anti-air guns in deck mounts, 1919 Model
2 x Twin mounts on centreline ends, evenly
spread 2 raised mounts
6
- 0,98" / 25,0 mm 60,0 cal guns - 0,55lbs / 0,25kg shells, 1 200 per
gun
Anti-air guns in deck mounts, 1919 Model
6 x Single mounts on sides, evenly spread 2
raised mounts
Weight of broadside 221 lbs / 100kg
Machinery:
Oil
fired boilers, steam turbines,
Geared
drive, 1 shaft, 14 886 shp / 11 105 Kw = 18,00 kts
Range
17 900nm at 12,00 kts
Bunker
at max displacement = 3 584 tons
Complement:
390
- 507
Cost:
£2,441
million / $9,766 million
Distribution of weights at normal
displacement:
Armament:
61 tons, 0,3%
- Guns: 61 tons, 0,3%
Machinery:
463 tons, 2,6%
Hull,
fittings & equipment: 3 882 tons, 21,5%
Fuel,
ammunition & stores: 2 375 tons, 13,1%
Miscellaneous
weights: 11 300 tons, 62,5%
- Hull below water: 7 500 tons
- Hull above water: 3 800 tons
Overall survivability and seakeeping ability:
Survivability
(Non-critical penetrating hits needed to sink ship):
26 015 lbs / 11 800 Kg = 493,4 x
4,7 " / 120 mm shells or 2,4 torpedoes
Stability
(Unstable if below 1.00): 1,46
Metacentric
height 5,1 ft / 1,5 m
Roll
period: 12,2 seconds
Steadiness - As gun platform (Average = 50 %): 80 %
-
Recoil effect (Restricted arc if above 1.00): 0,03
Seaboat
quality (Average = 1.00): 2,00
Hull form characteristics:
Hull
has raised forecastle, raised quarterdeck ,
a normal bow and a round stern
Block
coefficient (normal/deep): 0,700 / 0,707
Length
to Beam Ratio: 8,00 : 1
'Natural
speed' for length: 22,91 kts
Power
going to wave formation at top speed: 38 %
Trim
(Max stability = 0, Max steadiness = 100): 40
Bow
angle (Positive = bow angles forward): 8,50 degrees
Stern
overhang: 10,17 ft / 3,10 m
Freeboard
(% = length of deck as a percentage of waterline length):
Fore
end, Aft end
- Forecastle: 10,00%, 30,18 ft /
9,20 m, 27,89 ft / 8,50 m
- Forward deck: 30,00%, 20,01 ft / 6,10
m, 20,01 ft / 6,10 m
- Aft deck: 45,00%, 20,01 ft / 6,10 m, 20,01 ft / 6,10 m
- Quarter deck: 15,00%, 27,89 ft /
8,50 m, 27,89 ft / 8,50 m
- Average freeboard: 22,07 ft / 6,73 m
Ship space, strength and comments:
Space - Hull below water (magazines/engines, low =
better): 78,0%
-
Above water (accommodation/working, high = better): 134,2%
Waterplane
Area: 27 423 Square feet or 2 548 Square metres
Displacement
factor (Displacement / loading): 145%
Structure
weight / hull surface area: 89 lbs/sq ft or 435 Kg/sq metre
Hull
strength (Relative):
-
Cross-sectional: 0,95
-
Longitudinal: 1,57
-
Overall: 1,00
Excellent
machinery, storage, compartmentation space
Excellent
accommodation and workspace room
Ship
has slow, easy roll, a good, steady gun platform
Excellent
seaboat, comfortable, can fire her guns in the heaviest weather
